100% Original LED Strip Pick And Place Machine 68 Heads 250000CPH High Speed

Shenzhen Eton Automation Equipment Co., Ltd.
Contact Now

100% Original LED Strip Pick And Place Machine 68 Heads 250000CPH High Speed

Brand Name : ETON

Model Number : HT-F9

Certification : CCC, CE, SIRA

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 50 sets/month

Delivery Time : 30 days

Packaging Details : vacuum package, wooden case

Warranty : 1 Year

Applicable components : 0402

Name : SMT Pick and Place Machine

Power supply : 380AC 50HZ

Condition : 100% Original

Weight : 1700kg

Mounting speed : 250000CPH

Dimension : 2700*2300*1550mm

Pcb thickness : 0.5-5 mm

Contact Now

Product Features

  1. Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. Producing with 4 types materials at the same time with high capacity , available for board with any proportion of LED chip and resistor .
  2. Dual arm four module ,17 nozzles for each mounting part , part A / B / C / D can be mounted separately or synchronously .
  3. Calibration automatically , high precision , available for RGB .
  4. Exclusive patent technology: Group to take and group to mount .

Technical parameter

Model HT-F9
Length 2700mm
Width 2300mm
Height 1550mm
Total Weight 1700kg
PCB size(L* W) Max:1200*300mm Min;100*100mm
PCB Thickness 05-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting mode Group to take and group to mount
System Windows7
Software R&D Independently
Display Touch screen monitor
Input Device Keyboard, mouse
No.of camera 5sets(Digital camera)
Components LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc.
No.of feeders station 68PCS
No.of nozzles 68PCS
Conveyor transmission Max Length:1200mm
Electrical control Independent research and development by ETON
X,Y,Z Axis drive way High-end magnetic linear motor +Servo motor
Feeding way Electric feeder with double motor

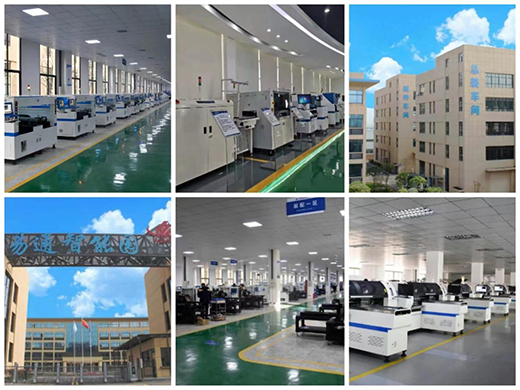

Company Profile

Shenzhen ETON Automation Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.

100% Original LED Strip Pick And Place Machine 68 Heads 250000CPH High Speed

Company Advantage

  1. A leading manufacturer of automatic high - speed pick and place machine
  2. The largest high - tech LED light making machine manufacturer in China
  3. Obtained a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights

100% Original LED Strip Pick And Place Machine 68 Heads 250000CPH High Speed

FQA

Q1:Do you provide software updates?

For customers who buy our machine, we can offer free upgraded software for you.

Q2:Does our machine need air supply?

Yes, F9 needs air supply.

Q3:This is the first time I use this kind of machine, is it easy to operate?

We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/WhatsApp/phone etc for online service.

Q4:How about the warranty?

We have 1 years warranty for F9 with lifetime after-sale support.

Q5:How can I buy machine from you?

(1)Consult us on line or by e-mail;

(2)Negotiate and confirm the final price, shipping, payment method and other terms;

(3)Send you the proforma invoice and confirm your order;

(4)Make the payment according to the method put on proforma invoice;

(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;

(6)Send your order via express or by air or by sea.
