Flexible strip printing Full automatic SMEMA interface machine
Machine configuration
● Programmable suspension printing head;
*Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;
*Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Technical parameter
| Screen Frames | Min Size | 850mm |
| Max Size | 550mm |
| Thickness | 25~45mm |
| FPCB Min Size | 50mm |
| FPCB Max Size | 260mm |
| FPCB Thickness | 0.5~5mm |
| FPCB Warpage | Max. FPCB diagonal 1％ |
| Transport Height | 900±40mm |
| Transport Direction | Left-Right |
| Transport Speed | Max 1000mm/S Programmable (Adjustable) |
| Board Location | Support System | Platform jacking tension |
| Clamping System | Edge clamp fixed |
| Print head | Two independent motorized print heads |
| Squeegee Speed | 6~300mm/sec |
| Squeegee Pressure | 0~10Kg/cm2 |
| Squeegee Angle | 55°(Standard) |
| Squeegee Type | Stainless steel(Standard), plastic |
| Stencil Separation Speed | 0.1~20mm/sec Programmable |
| Cleaning System | Manual cleaning |
| Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° |
| Machine |
| Repeat Position Accuracy | ±0.01mm |
| Printing Accuracy | ±0.025mm |
| Cycle Time | ≤9s (Exclude Printing & Cleaning) |
| Air Required | 4.5~6Kg/cm2 |
| Power Input | AC:220±10%,50/60HZ 1Φ 1.5KW |
| Control Method | PC Control |
| Machine Dimensions | 1754(L)X1249(W)X1600(H)mm |
| Machine Weight | Approx:600Kg |
| FPCB transport over plate height | 20mm |
Machine application
Our advantage
We can provide SMT line solution for you!
Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON
Our Exhibitions
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Packages

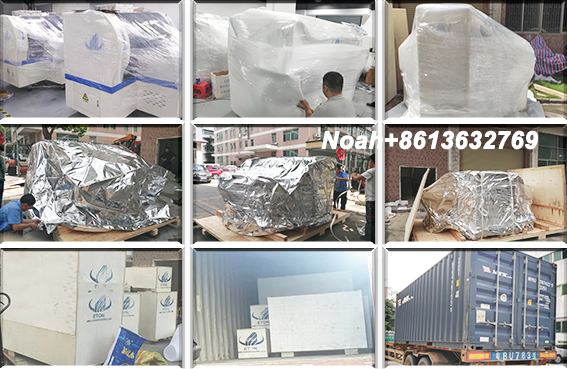

Step 1: Wrap with stretch film to prevent the equipment from.
