Accuracy SMT Mounter for 0201 Components, 98000 Capacity Pick And Place Machine

Product Categories
Shenzhen Eton Automation Equipment Co., Ltd.
Contact Now

Accuracy SMT Mounter for 0201 Components, 98000 Capacity Pick And Place Machine

  • 1
  • 2

Brand Name : ETON

Model Number : YT20S

Certification : CE,CCC,SIRA

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 50 sets per month

Delivery Time : 30 days

Packaging Details : Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.

Warranty : 1 year

Name : SMT automatic Pick and Place Machine

Application : LED lights, electrical products, household appliance

Power supply : 1Φ 220AC 50HZ 1.5KW

Mounting speed : 98000 CPH

Dimension : 1500*2690*1650mm

Pcb thickness : 0.5-5mm

No.of heads : Double side:20 PCS Single side:10 PCS

Contact Now

Accuracy SMT mounting 0201 components 98000 capacity pick and place machine

Machine main features

  • Lightweight, the head is integrally formed, and the 10 sets of Z axis are independently controlled by modular magnetic linear motor, which greatly improves the speed, accuracy and stability.
  • Precise corner system: The modular corner system independently controls the angle of each component to ensure high-precision placement. 10 suction nozzles per head, center distance 16mm.
  • Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
  • Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach 98000 CPH;

Machine main parameter

Model YT-20S
PCB size

Max size: 500*450 mm(Single side)

500*300(Double side)

Min size: 50*50 mm
PCB thickness 0.5-5 mm
PCB clamping Cylinder clamping, track width adjustable
Software R&D independently
Production management MES system Customized (Option)
Off-line programming Available
Camera Vision alignment + Mark correction
Repeat precision CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting height 20 mm
Position mode Optical
Optimal speed 98000 CPH
Component range Min 0201~40*40 mm package and IC etc.
Position mode Optical
No.of heads

Double side:20 PCS

Single side:10 PCS
Feeding way Intelligent double head feeder
X,Y,Z Axis drive way High end magnetic linear motor
Power 1Φ 220AC 50HZ 1.5KW

Our Exhibitions

Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.

Accuracy SMT Mounter for 0201 Components, 98000 Capacity Pick And Place Machine

Our advantage

  • Focusing on SMT high speed pick and place machine more than 20 years
  • The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
  • ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

Accuracy SMT Mounter for 0201 Components, 98000 Capacity Pick And Place Machine

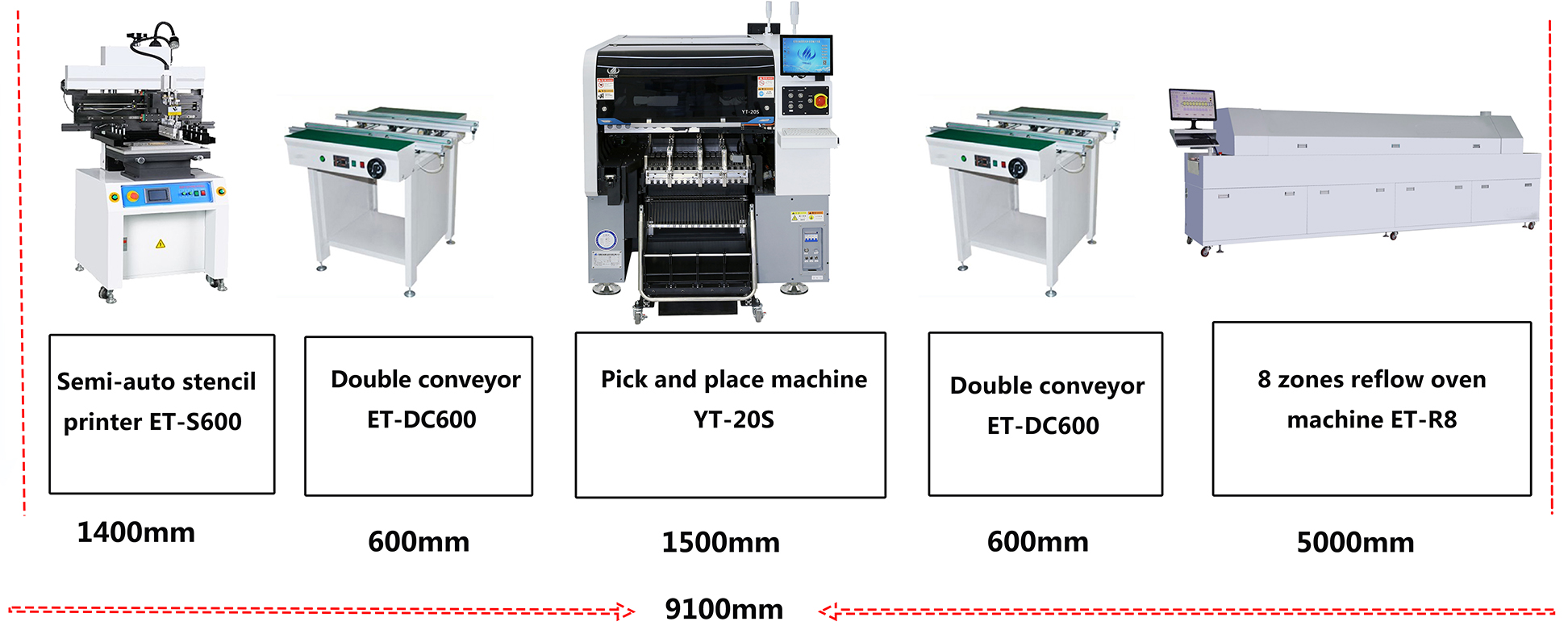

SMT Line solution

Accuracy SMT Mounter for 0201 Components, 98000 Capacity Pick And Place Machine

Shipping and Delivery

Shipping Way:

※ By air, for sample and small package

※ By sea, for large package and quantity;

※ Other ways as customer requested.

Delivery Time:

※ Within 30 Days.
