68 heads any length PCB size led mounting machine for flexible strip light
Product presentation
Strong durability: T9 pick and palce machine ,The quality of hardware equipment is guaranteed by certificate, the quality of dual motor electronic flying and guide rail and screw is guaranteed, which can support 24-hour operation.
High Speed: T9 LED mounting machine Applying the exclusive patented technology of group-based and group-based pasting, the pasting speed is 200000 CPH, 64 feeders station and 64 nozzles.T9 led mounting machine can automatically transmit on-line. And It can produce 2-4 kinds of materials at the same time, which greatly improves the efficiency.
Simple operation:T9 led mounting machine Windows 7 system can be used to switch the Chinese-English interface, usually 3 to 5 days training of operation is enough.
Technical parameter
| HT-T9 |
| PCB | PCB length width | 250mm*any length |
| PCB thickness | 0.5~1.5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take and group to mount |
| O.S. | system | Windows 7 |
| software | R&D independently |
| display | LED monitor |
| Input device | Keyboard , mouse |
| Vision system | No.of camera | 5 sets of imported camera Vision alignment,mark correction |
| Mounting precision | 0.02mm(repeat precision) |
| Mounting height | <15mm |
| Mounting speed | 100000~150000CPH |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. |
| Components space | 0.2mm |
| No.of feeders station | 64PCS |
| No.of nozzles | 64PCS |
| Power | 380AC 50HZ |
| Power consumption | 6KW |
| Conveyor transmission | Belt drive |
| Transmission speed | >500mm/sec |
| Transmission direction | Single (left to right or right or left) |
| Transmission mode | Auto online drive |
| Position mode | Optical |
| Air pressure | >5.0kg /cm² |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1set | Independent research and development by ETON |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis |
| Feeding way | Electric feeder with double motor |
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
Product Tags:
|
|

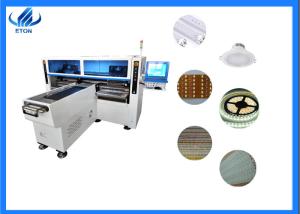

200000CPH 68 Heads LED Mounting Machine For Strip Light Images
|
