Advantages of LED
- Small size
- low power consumption
- long service life
- Environmental protection
- Sturdy and durable
Introducing company
ETON is a national high-tech enterprise dedicated to R&D, production and sales of SMT high-speed machine placement machines, technical after-sales technical services. The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 utility patents, and 12 software copyrights.
Product characteristic
♛The maximum length of placeable PCB board is 600*350mm,and minimum size is 100*100mm
♛Component:LED/capacitor/resistor/shaped components,etc.
♛System:Windows 7
♛Software:R&D independently
♛Mounting speed:90000CPH
♛Feeder station:48 PCS
♛Nozzles:24 PCS
♛Drive way:high-end magnetic linear motor and servo motor for X,Y,Z axis
Main parameter of HT-E8D
| Dimension | 1950*2250*1650mm |
| Total weight | 2200kg |
| PCB Length width | Max:600*350mm Min:100*100mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separate placing,separate picking and separate placing |
| No.of camera | 4 PCS |
| Feature of camera | Vision alignment,mark correction |
| Mounting precision | 0.02 mm |
| Mounting element height | ≤5mm |
| Feed station | 48 PCS |
| nozzles | 24 PCS |
| Mounting speed | 90000CPH |
| Components space | 0.2mm |
| X Y Z axis drive way | High-end magnetic linear motor+servo motor |
| Feeding way | Electric feeder with double motor |
| System | Windows 7 |
| Software | independent research and development |
| Display | Touch screen monitor |
| Input device | Keyboard,Mouse |
Exclusive patented technology
- Electronic feeder feeding system
- Vision alignment flight identification,Mark correction
- Non-stop material re-loading function
- Auto-optimization after coordinates generated,etc
Application
Perfect placement of various Power drives,electric boards,lens,linear bulb,household appliance,etc.
Optimum speed
- The machine HT-E8-600 of speed is 90000CPH
- Factors affecting the actual production capacity: the time of entering and exiting the board, whether the board is received and delivered in time, the number of heads used, the type of components, the number of components, etc.
| Name | Most productive | The actual production capacity of the lamp tube | The actual production capacity of the bulb |
| HT-E8D | 90000CPH | According to the actual production situation |
| HT-E8S | 45000CPH |
Certification of Honor
We have obtained a number of certificates related to the machine and the company's honorary certificate

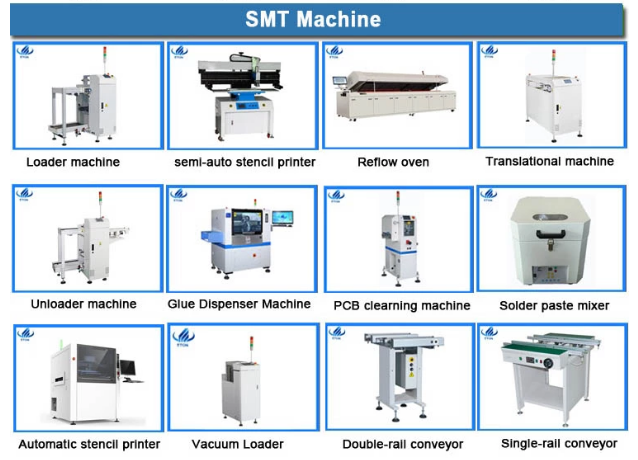

ETON machine introduction
Our company manufactures different types of placement machines and SMT machines.
Packaging and shipping
- Packaging:We use vacuum packaging plus wooden box outer packaging
- Shipping:The machines exported by our company support three modes of transportation by sea, land and air
Remark
- The delivery period is within four weeks after receiving the deposit
- Term of payment:T/T
- Quotation in valid:30 days
