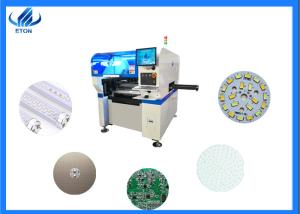

high capacity LED Light led bulb assembly machine
Two kinds of visual location system, one is Mark locating visual system in the upside another one is importing camera components location adjust recognition system in the downside, which can insure the accuracy of SMT.
The Z axis was powered by 10 servomotors and made by CNC brushed aluminum rod which insured the high-speed material feed.
Powerful function: with different material feeder, it can finish different SMT for led product.
components
LED,capacitors,resistors,IC,lens ,shaped components,etc.
Product Applications
LED house lighting: LED tube, LED bulb, LED ceiling light, led panel, led candle light
LED lighting product: soft led strip, led strip, led module,LED display screen.
Features
1.Integrated flying vision system
2.Servo driven, position feedback from 2 micron linear scales coupled with a precision placement head
3.10 Simultaneous pick-up head
4.Placement rates up to 35,000 CPH
5.The GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes
6.Accurately place, manager, and track components with Smart Feeders
7.Accurately places a wide range of components including 0402, LED, BGA,0.4mm pitch QFP,SMT Connectors and many others.
| RT-1 |
| PCB | PCB length width | Max:400*350mm min:50*50mm |
| PCB thickness | 0.1~6mm |
| O.S. | system | Windows 7 |
| software | R&D independently |
| display | Touch screen monitor |
| Vision system | No.of camera | 2 sets of imported camera Vision alignment ,mark correction |
| Mounting precision | 0.02mm(repeat precision) |
| Mounting height | <25mm |
| Mounting speed | 30000~35000CPH |
| Components space | 0.2mm |
| Power | 380AC 50HZ |
| Power consumption | 6KW |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis |
| Feeding system | No.of feeders station | 26 PCS |
| No.of nozzles | 8 PCS |
Application
Production line layout
Logistics and delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Q: How about your company-ETON?
we are an professional manufacturer specialized in SMT Pick and Place Machine, We are the TOP-1 brand in China.And have own Industrial park.
Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.
Q: What is your payment terms?
100% payment before delivery
or 50% deposit in advance and the rest before shipment.
Q: How is the warranty?
1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.
2. The complete machine has a warranty period of 18 months from delivery and lifetime maintenance service.
3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
Q:Why choose us?
ETON is the famous brand for high-end pick and place machine. We have professional R&D team, providing 24 hours quick response after-sales service.
