T9 Dual arm magnetic linear high-speed LED light making machine for no wire flexible strip
Machine features
- Super High-speed pick and place machine, producing with four types material at the same time with high capacity, available for 5M, 50M or any length of flexible strip and roll to roll.
- Machine functions: Picking components and mount on the PCB automatically.
- Intelligent PCB Clamping mode: Vacuum adsorption, cylinder splint, adjustable track width.
- Exclusive patent technology :Group to take and group to mount

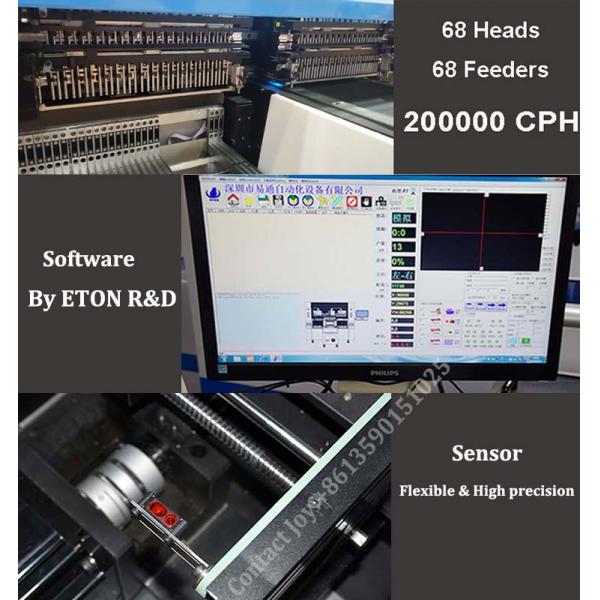

- Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
- High precision, Calibration automatically, available for RGB.
- Easy operational program, much more convenient, automatic vision makes position fixing more accurate and convenient.
- Optinal :8mm,12mm,16,and 24mm automatic feeder, different nozzles and feeding way.
Main parameters
| Models | HT-T9 |
| Mounting element height | ≤5 mm |
| Mounting speed | 200000-250000 CPH (Chip per hour) |
| Components | LED 3014/3020/3528/5050 and resistor, capacitor, bridge rectifiers |
| No. of Feeders Station | 68 PCS |
| No. of Nozzles | 68 PCS |
| Power consumption | 6 KW |
| X,Y Axis Drive way | High-end magnetic linear motor+ servo motor |
Applications

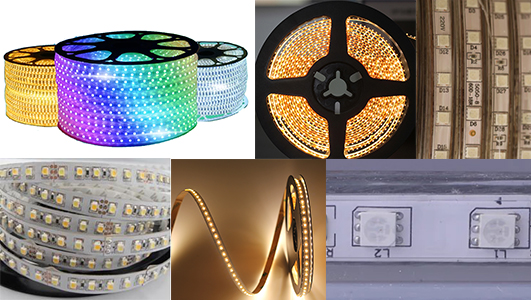

HT-T9 is the module professional for led strip light(LED Strip light making machine) It is applied to 5M,10M,15M,20M,25M,50M strip light. If you need other products machine, we also have related modules.
SMT Production line
SMT Production line is mean the surface mounting technology production line. It can be semi auto line or total automatic line. Usually include Loader machine(Send board machine), Stencil printer, Reflow oven, Conveyor, Belt line, Reflow oven, Un-loader machine, etc. For strip light, different length need different length space. For T9, normally apply to 25 m Strip light, here is the line design:
After sales service
ETON as the biggest high speed pick and place machine in China, we are not only famous with high speed, but also famous with the good service . ETON set up office in different cities, like Shenzhen, Shanghai, Zhongshan, India Delhi, Turkey, Egypt, etc.
If you buy our machine, we provide free install and training for you, will sent engineer to your factory to install and training.
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
And we also give professional technology suggestion with our clients.
ETON manufacturer
In 2020, ETON Jiangxi Industrial Park was successfully completed, equipped with an advanced processing and manufacturing center, strict quality control, and standardize production, streamline production processes. ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patens, 112 practical patents, 12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000 CPH, which save much labors and space of production, got large market share in USA, KOREA, INDIA, GERMANY, EGYPT, TURKEY, VIETNAM, TUNISIA, THAILAND more than 20 counties.
