Economic Smt Led Pick And Place Machine Led Light Production Line Machine

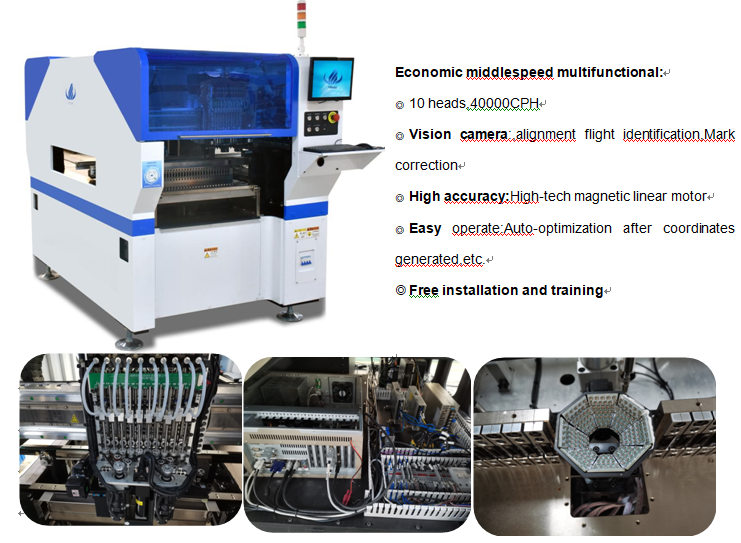

Details view of RT-1 LED Pick and Place Machine
1: Heads: (Components can be mounted at a 360-degree angle, up to 22MM)
2: Camera: (Camera: Vision alignment flight identification, mark correction)
3: Computer:(Operation interface: Chinese-English dual translation, simple
and easy to operate. Own software can provide update whole life for free )
4: X Axis:(High-end magnetic levitation motor, faster speed and accuracy, better stability)
Advantages of RT-1 LED Pick and Place Machine
1: High precision high stability:
High-end magnetic linear motor with Vision alignment flight identifications, Mark correction.
2: Wide range application:
Suitable for small PCB products, Such as LED bulb. LED linear bulb, LED DOB bulb, LED street light, LED downlight, LED Driver and small home appliance electronic boards, etc.
3: Wide range of mountable components:
Can mount minimum size 0402 components. And also can mount less than 22MM high components. Including LED chips, resistors, capacitors, IC, shaped components, inductance, etc.
4: The leader of multi-functional medium speed machine
The maximum actual speed for LED lightings can reach 25000CPH, suitable for new enter and middle LED manufacturer.
5: Long time using life and good performance
Advanced processing and manufacturing center, strict quality control, and standardize production, streamline production processes make our machines has high quality standard. Own design and produce software and feeders make the machines’ stability and long-life and good performance.
6: Update the software whole life free
Matched ETON own software, can provide software update freely whole life time.
General Description
Application
Parameters of RT-1 LED Pick and Place Machine
| Machine Model | RT-1 |
| Heads | 10 PCS |
| Feeder Stations | 32 PCS |
| No. of Camera | 2 PCS |
| mounting Precision | ±0.04MM |
| Mounting Height | Standard:≤15mm(Height Customizable) |
| Mounting Speed | 40000CPH |
| Components | LED chip, Capacitors, Resistors, Shaped components, etc. |
| Power Consumption | 4KW |
| X,Y,Z Axis Drive Way | High-end Magnetic Linear Motor+ Servo Motor |
| Dimension | L*W*H: 1200*1930*1500MM |

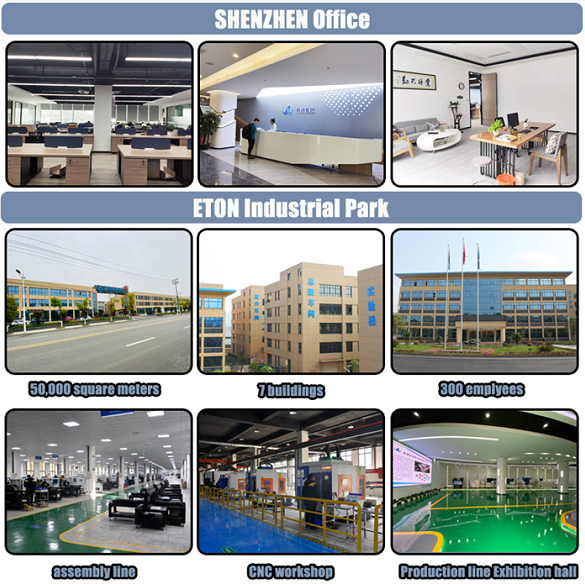

ETON Brand
ETON is China’s largest manufacturer of SMT machine, industrial park more than 50000 square meters.
ETON got more than 14 years R&D experience in SMT industry equipped with core technology
ETON Got large more than 80% big led lighting industry market, machine hot sell to more than 20 countries.
ETON R&D Global first automatic stencil printer machine for roll to roll 100 m led strip light
ETON R&D super high speed pick and place machine, 250000 CPH, fastest in all over the world
Package and delivery
Our Exhibition
Our machines are exported to many overseas countries, we have participated in exhibitions in China, India, Turkey, Egypt, Pakistan, Tunisia, Vietnam, Thailand, Germany, Russia and other countries and regions, so that more overseas customers know us.
Our Market Sharing
ETON as the leading manufacturer of global optoelectronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.
Our service

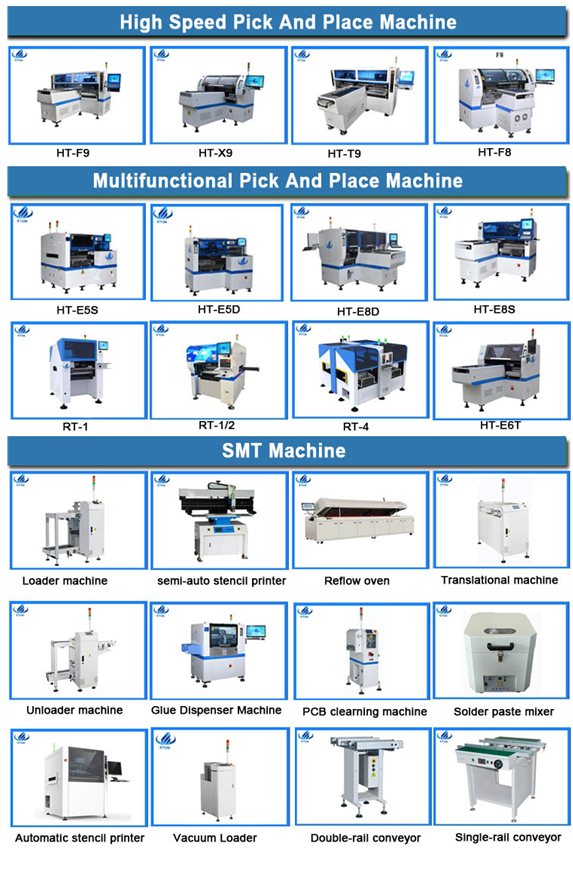

Our products
We professional in FULL solution for client from all over the world.
ETON supply whole SMT line machine, mainly included : Automatic stencil printer, Semi-automatic stencil printer, Conveyor, Pick and place machine, Reflow oven machine, Loader, Un-loader machine, PCB cleaning machine, stencil printing machine, etc.
