80000 CPH SMT Mounter Machine 6 Sets Flight Vision Camera For Electrical Product

Machine name : smt machine

No. of Camera : 6 sets

Application : Electrical product

Mounting Speed : 80000 CPH

Contact Now

SMT Mounter machine for electrical product

YT20 Machine features

MACHINE HIGHLIGHTS

With high-speed multi modular head and brand new flight vision camera suitable for recognition performance, size up to 40*40mm, apply to BGA/CSP etc

FLEXIBLE PRODUCTION

Support Docking cart, smart double-head tape feeder and IC tray feeder,multi and flexible feeding way

HIGH RELIABILITY

Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy.

TRANSMISSION SYSTEM STRUCTURE

Flexible PCB handling capabilities, double rail,both gantry can mount the same large PCB at the same time, realizing flexible production.

YT20 main parameters

Model YT20
PCB Length Width

Max size:500mm*450mm(single PCB) /500mm*300mm(double PCB)

Min size: 50mm*50mm

PCB Thickness 0.5-4.5mm
PCB Clamping Cylinder clamping, track width adjustable
Rail 2 Rail,2 gantries(Rail 1,4 are fixed rail)
No. of Camera 6 sets (Digital camera)
Bottom vision camera recognition/Fill identification camera
Vision alignment+Mark correction
Mounting Precision ±0.02mm
Mounting Height ≤15mm
Mounting Speed 80000CPH(Optimum speed)
Components range Min 0201 ~40*40mm Tape reel packages and IC tray feeder etc.
No. of Feeder station Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feeder IC tray feeder:Option)
No.of Heads Double side:20pcs(single side:10pcs)
Feeding way Intelligent Double head Feeder

80000 CPH SMT Mounter Machine 6 Sets Flight Vision Camera For Electrical Product

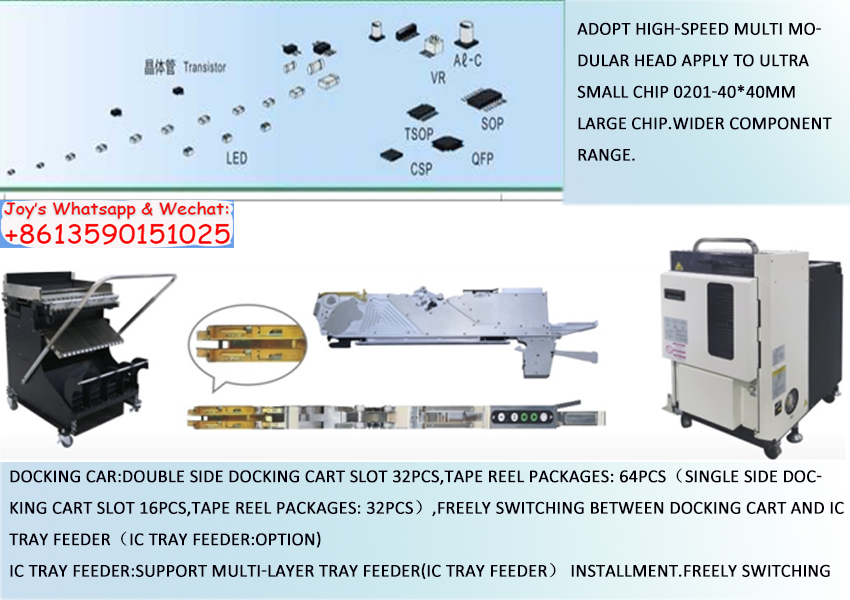

Intelligent SMT Feeding system

Docking cart function

The function of docking cart is the support of the smd components, it is the basement of feeders. Feeder install on the docking cart with the electrical and feeding the smd component nonstop.

So with docking cart spare part, there could be achieve the quickly change line to produce different product, also could connect the tape reel more convinent. Short the changing line time.

IC Tray feeder function

IC Tray feeder is using for feeding IC(QFP/BGA/etc). YT20 could be using feeder feeding and IC tray feeder at the same time. Suitable for electrical board, high precision board manufacturing.

Feeder size and features

YT20 using ETON Honor series double head feeder, it is higher precision for feeding mini 0201 components, mini vibrating when running.
