LED display high speed smt placement machine 80000CPH
Machine main features
RT-2 can produce 2 different products at the same time with high capacity
RT-2 has 4sets of camera to achieve flight identification and Mark correction
RT-2 is equivalent to two RT-1 and the enhanced version of RT-1.
RT-2 can achieve group to pick and separate to place, separate to pick and separate to place.
RT-2 can mount all kinds of production: lighting (LED bulbs, tubes, panel light, street light, flexible strip), household appliance, power driver and so on.
Machine main parameter
| Length | 1200mm |
| Width | 1930mm |
| Height | 1500mm |
| Total weight | 2500kg |
| PCB Length width | Double side, double track: Max: 450*300mm Min: 80*80mm |
| Single side, single track: Max: 450*540mm Min: 80*80mm |
| PCB Thickness | 0.1-6mm ( If <0.6mm need jig) |
| No. Of feeders station | 64PCS |
| No. Of head | 20PCS |
| Operating environment | 23℃±3℃ |
| Power consumption | 6KW |
| X, Y, Z Axis drive way | High-end magnetic linear motor and serve motor |
| Feeding way | Electric feeder with double motor |

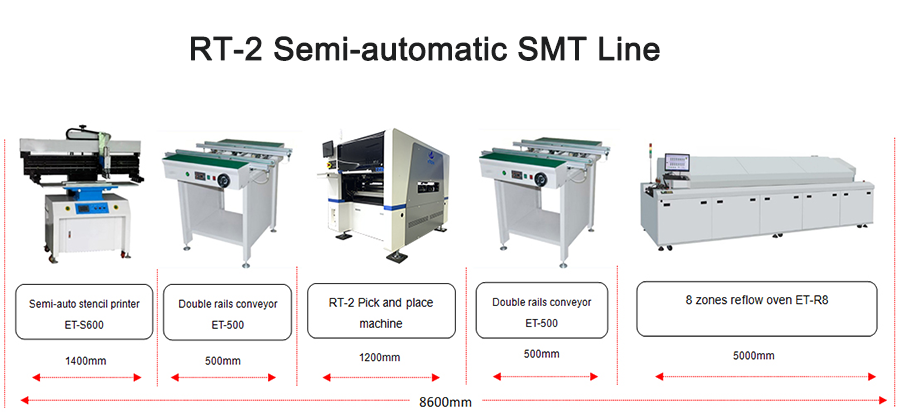

LED display production process
| SMT production process |
| process | Step. | details |
| Step 1 | Solder paste Printing | Operate the stencil printer to print the solder paste onto the PCB |
| Step 2 | Mounting Part | The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB |
| Step 3 | Reflow Soldering | The PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB. |
| Step 4 | Testing | Check whether the PCBA is misaligned or shift. |
| Note: In the smt production line, the display PCB board needs to be installed on two sides: One side is the IC side, the other side is the LED chip side. During the installation process, the IC side should be installed first, and then the LED chip side should be installed. Therefore, the pcb board of the display needs to be mounted twice and entered into reflow soldering twice |
FAQ
(1)It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company. About 3-5 days you can operate.
(2) How is the transportation?
By sea, by air and land transportation.
(3) Can we customize the machine?
Of course, all of our machines can be customize.
(4)What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
(5)Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
