Breaking the world SMT industry record - 50000CPH ultra-high-speed placement machine
What do you know about the placement machine?
For the pick and place machine is mainly for picking the led components to place the printed circuit board, so that make the led light source board or power driver board. For the T9-2S pick and place machine is with 136heads, optimal speed can reach 500K cph, and it apply to 3014/3020/2838/3528/5050, resistors, etc.
Brief introduction about T9-2S mounter:
With adjustable placement heads: component picking position can be adjusted according to PCB pad pith, min 6.5mm.
With unique design component leaking detection and individual component refill function;
Ultra-high-speed capacity: the placement head adopt the method of two times picking and once placing.
T9-2S can make any length flexible strip light, can produce four kinds of materials at the same time.
T9-2S pick and place machine details
| Dimension | 3454*3035*1777 |
| Weight | 3100kg |
| pcb size | 250(±10mm)*any length |
| Pcb clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| No.of heads | 136 pcs |
| Optimal speed | 500000cph |
| No.of camera | 10 pcs |
| Mounting height | ≤5mm |
Why choose t9-2s pick and place machine
| | ETON T9-2S mounter | ETON HT-T9 mounter |
| Stability | 3100kg | 1700kg |
| No. Of heads | 136pcs | 68pcs |
| Optimal speed | 500000CPH | 250000CPH |
| No. Of camera | 10pcs | 5pcs |
Conclusion: Compared with T9, T9-2S has double production efficiency, stronger stability, and the price is not very large
Why choose us:
1. 50000㎡ industrial park, dedicated to research and development of production machines
2. 300+ employees, over 50+ R&D team members
3. Won 132 patent certificates and many honorary certificates

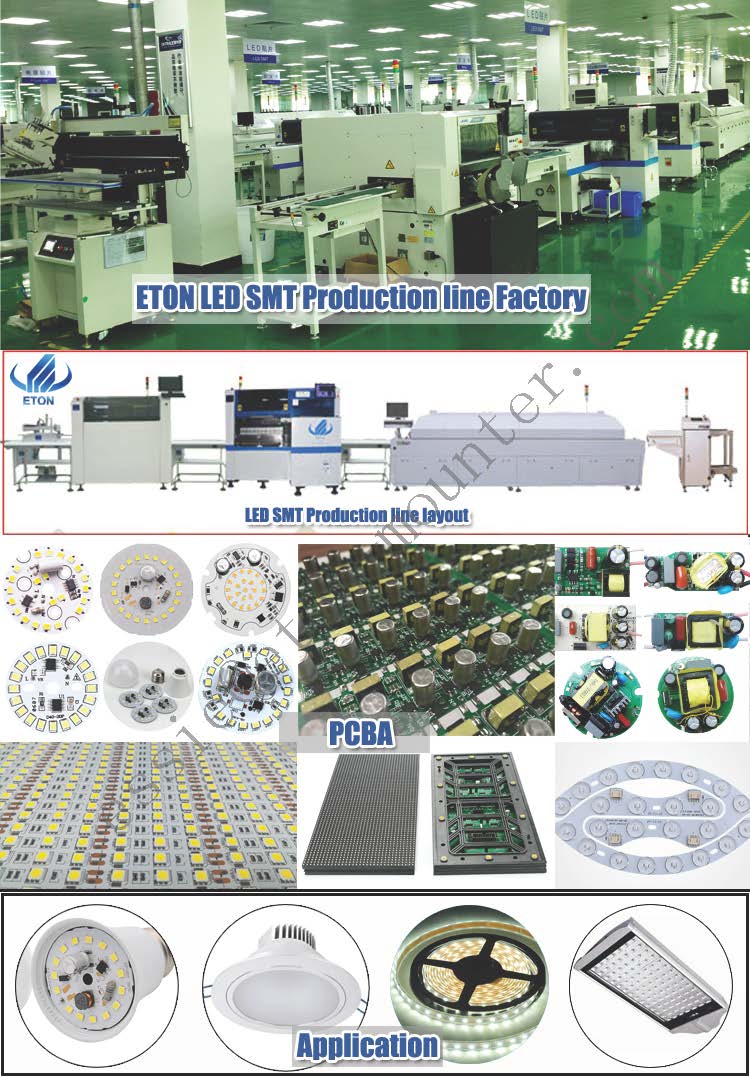

4. Provide SMT production line solutions and equipment
5. There are showrooms, offices and local engineers overseas
Package & Delivery:
※ Standard Wooden Case with Vacuum Package
Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
After services
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
FAQ
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner | |
Q: Are you a trade company or manufacturer?
A: Full SMT machines manufacturer for smt line in China; OEM & ODM service are available. |
Q: What is your delivery date?
A: About 35 days after receipt of payment. |
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment. |
Q: Why choose you?
A: Leading SMT Supplier in China; Professional SMT solution & equipment provider;
With overseas offices and local engineers; Professional after-sales service team. |
| Q: What is this machine warranty ? And how about the after sales service? A: We provide one year warranty, during warranty, any parts need to be repaired and replaced will be free. And we will support machine install and training online, also machine support remote control, machine will be very easy for operate. |
