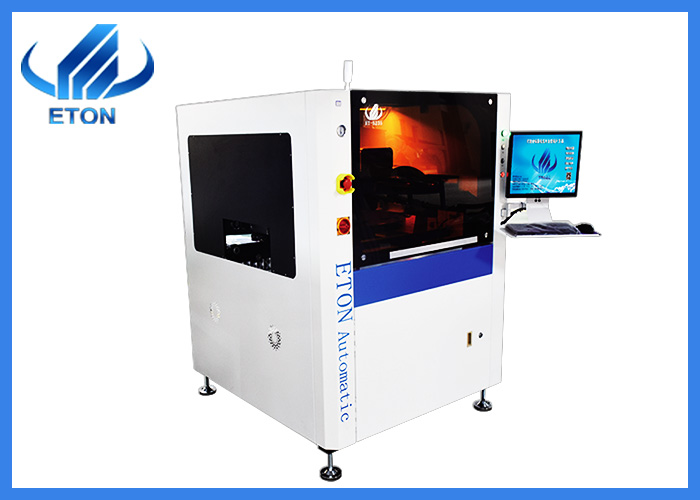

Full automatic wide applicability PCB solder paste SMT line servo motor printer
Machine main features
- PCB transport and clamping system
- The PCB loading direction can be selected and combined freely;
- Unique crafted internal gear conveyor belt to prevent jamming;
- Programmable transport speed control makes PCB stop more precise;
- Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh.
- Stencil positioning system
- Arch bridge-shaped suspension hanging direct-contact scraper;
- The size of steel mesh is universal, with goof and wide applicability;
- Segmented fixed steel mesh frame.
- Programmable suspension self-adjusting stepper motor drives print head;
- Bilateral double-slider positioning type slide rail structure ensures the accuracy and smoothness of running before and after printing;
- Slide rail type scraper system, improve operation stability and prolong time;
- Embedded scale, never fall off.
- Easy to learn and easy to use friendly operation interface;
- With good human-machine dialogue function;
- Make program files with teaching and navigation functions, with prompts for each step;
- One key switch between Chinese and English, with operation log, fault record analysis and diagnosis.
- X,Y axis adopts high-precision grinding ball screw, driven by servo motors at both side;
- The polarizer is added inside, and the mark different shapes is automatically and accurately grasped, and the upper, lower and coaxial three way uniform light sources.
Machine main parameter
| Model | ET-5235 |
| PCB size | Max:520*350 mm Min:50*50 mm |
| Transport height | 900±20mm |
| Transport speed | Max 1200mm/s programmable |
| Printing accuracy | ±0.025mm |
| Cycle time | ≤9s(Excluding printing&cleaning) |
| Control method | PC control |
| PCB transfer overhead height | 10mm |
